Stallion table saws are designed with attributes like strength, grace, power and beauty. CWI Woodworking Technologies has developed Stallion Sawing Equipment to be among the elite of woodworking machinery sold in North America.

An industrial Stallion table saw like the S5 which features a sliding table and scoring capability is loaded with industry leading features, performance and safety built into its frame.

Download Manual | Download Dimensional Drawings
Product Details
Stallion 5' Sliding Table Saw (S5S)
The S5 Super is one of a series of Stallion 12” sliding/scoring panel saws built with abilities for the small wood shop which just can’t be matched with a standard table saw. A true workhorse machine designed for accuracy and ability to accomplish any demanding task asked of it.

The quality of the build, the cast iron trunnions, the anodized aluminum sliding table and the included sawing accessories make this machine stand out against any competitive sized machine on the market today.
The S5 Super, like the Stallion S5B and S8, is a true industrial quality saw but with a 60” stroke of the sliding table and an additional ¾ HP scoring motor.

Many competitive machines in this class of saw use belt drive scoring and very small scoring saw blades in either 80mm or 100 mm diameter. The S5 uses an industrial sized 120mm x 20mm bore scoring saw blade set (not included) and because it operates with its own motor it can be left in the off position and lowered into the body of the saw when being used for solid wood applications.

With belt drive designs in competitive machines the trunnion works of the saw are built much lighter in quality and the blade is always spinning whether in use or not.
Using the S5 saw for cutting man made laminates, melamine’s or veneered plywood’s is a dream. Always getting perfect cuts top and bottom with no chipping.

Equally as impressive for cutting solid woods the S5 is amazing for thick ripping / crosscutting, glue line cutting and dado cuts because the sliding table runs right up against the saw blades and the table rides so smoothly the quality of the cut is vastly superior to that of a standard cabinet saw. Working with live or rough edge solid woods, angle cutting, taper cuts, miter cuts on the S5 are amazingly simple and accurate.
Safety is another huge advantage of the S5 slider.

The operator of the S5 saw stands on the left side of the sliding table, not in front of the saw blade, as the sliding table now does all the work, not the operator’s hands pushing the workpiece past the blade.

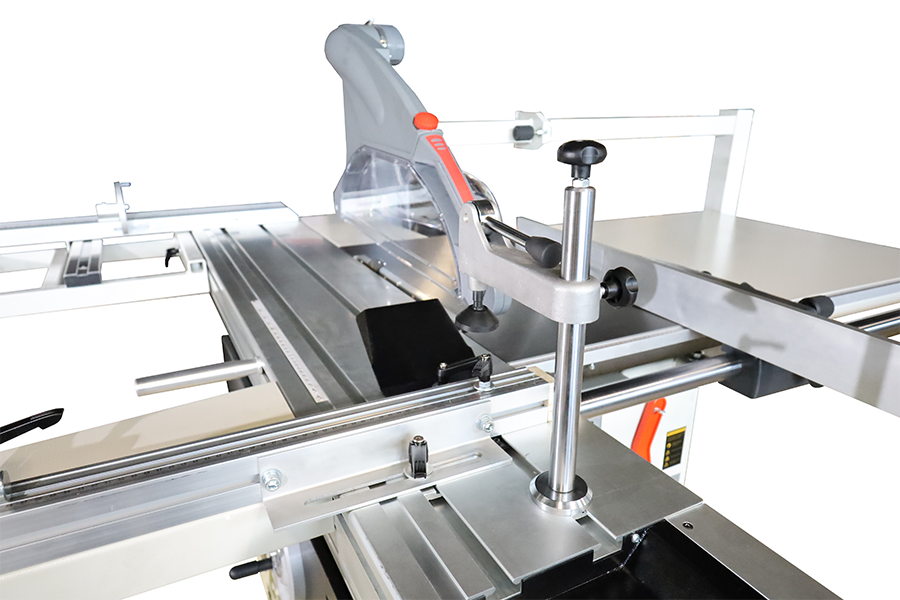

So not only does the user get smoother cuts, the clamping accessories allow the work piece to pass the saw blades in a solid locked position.  The “swing away” Euro blade guard is a very nice feature allowing full vision of the saw blade while providing extra safety and dust collection over top of the blade.
Included with the S5 is a very strong 4 HP motor to drive the 12” main blade with 30mm bore (not included), ¾ HP scoring motor, miter fence with flip stop, sliding table for a 60” crosscutting/ripping capacity (unlimited rip capacity without use of the sliding table), outrigger table assembly for better workpiece panel support,  full crosscut fence with two flip stops, ¾” dado capacity, eccentric hold down clamp for miter work or small piece cutting, panel clamp for narrow ripping, push bar for the sliding table and 36” rip capacity to the right of the blade with a cast iron/aluminum fence running on a solid steel 2” diameter fence bar.
The ease of adjustments, the quality of the build, the performance features and the sawing accessories included as standard equipment make these saws stand out over any other brand of table saw.
The Stallion S5 sliding/scoring table saws are a true step up in capabilities and safety over standard design cabinet saws allowing users to have more creativity and ability in their wood shops.

Specifications:
– 18 AMP 4 HP 220 Volt Main Motor
– 3/4 HP 220 Volt Scoring Motor
– 12” Main Blade Capacity ( 30mm Arbor w/2 x10mm pin holes) (Not Included)
– 120mm x 20mm Scoring Blade (Not Included)
– Depth of Cut 102mm (12” Blade 90 Degree)
– Depth of Cut 72mm (12” Blade 45 Degree)
– 4000 RPM Main Blade
– 8000 RPM Scoring Blade
– Maximum Crosscut 60” w/Slider
– Maximum Rip 60” w/Slider (Unlimited without slider)
– Max Rip Width Right of Saw Blade 36”
– Dado Capacity of 3/4” (30mm Bore)
– Magnetic Safety Switch w/overload and under voltage protection
– Sliding Table Size 1600mm x 360mm
– Crosscut fence w/2 Flip Stops
– Miter fence w/Flip Stop

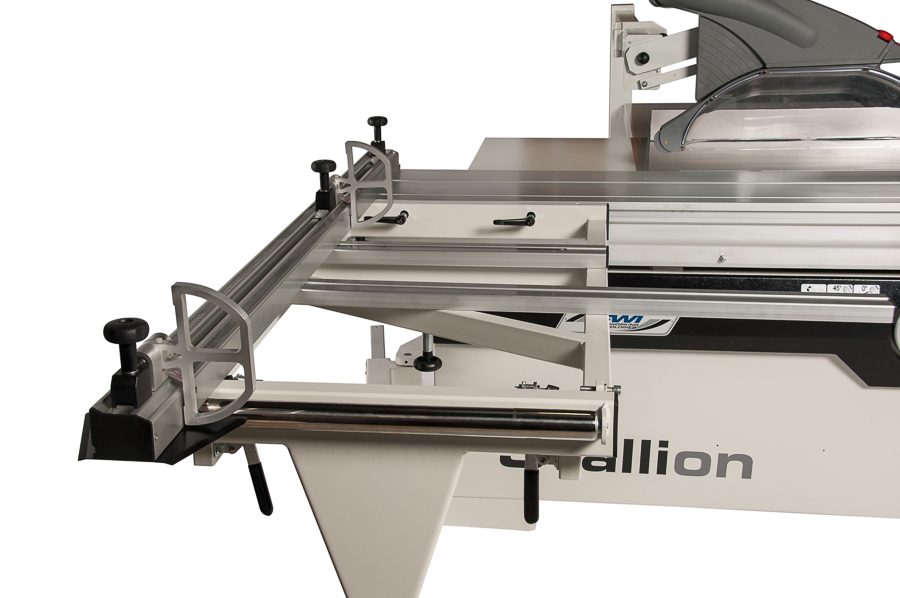

– Moveable Outrigger Table for Panel Support
– ”Euro” Swing Away See Through Blade Guard w/80mm Dust Port
– Table Height 34.5”
– Robust Cast Iron Trunnion System
– Heavy Cast Fence body with adjustable Aluminum Fence Plate
– Miter Fence w/Flip Stop
– Eccentric Hold Down Clamp
– Push Bar for Sliding table
– Panel Clamp for Long Narrow Workpieces
– 4” Dust Inlet
– CSA Certification
– Floor Space 94” wide x 73” long x 34.5” table height
– Shipping Size 51.5” x 39” x 43”
– 1125 Pounds Shipping Weight
