Stallion 14” 1.5HP Band Saw
CWI-B1413
$ 1,399.95 CDN
+ $149 flat rate shipping on most items/ locations.
The Stallion CWI-B1413 14” 1.5HP Band Saw has been designed with big features and lots of capacity but at a value that any woodworker will appreciate. The machine boasts a robust set of features and specifications that will appeal to any beginner or advanced woodworker, yet normally only seen in much higher priced machinery.
Whether you are resawing thick lumber or making delicate curves, the Stallion CWI-B1413 ensures accuracy and ease every step of the way.
Whether you are resawing thick lumber or making delicate curves, the Stallion CWI-B1413 ensures accuracy and ease every step of the way.
Product Details
The Stallion CWI-B1413 14″ Band Saw starts with a big 12.25” resaw capacity driven by 14” diameter cast iron wheels and a strong 1.5 HP motor.

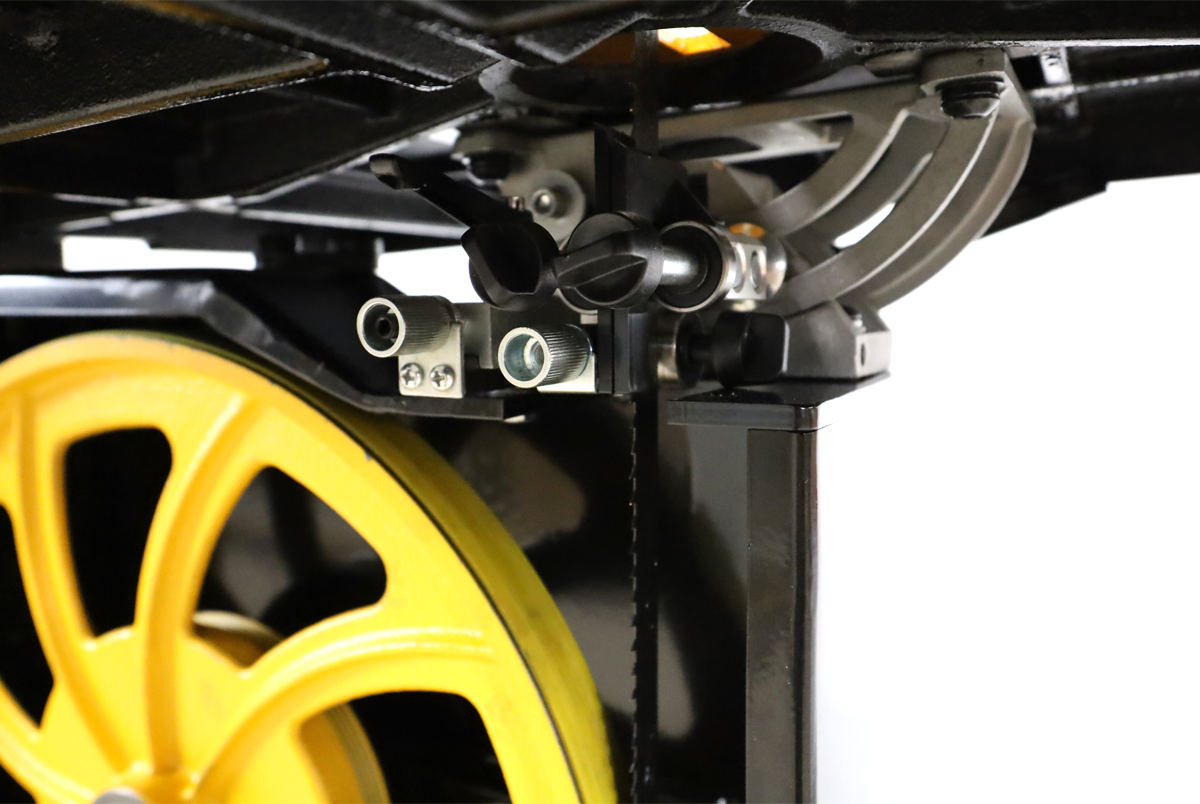

Pre-lubricated upper and lower ball bearing blade guides are adjusted with thumbscrew controlled guide bearings, allowing tool-less blade changing and quick adjustments.
A large quick release handle allows fast blade changes and the ability to relax the blades while not in use.
The machine’s frame is constructed with a heavy-duty welded steel column and frame, ensuring stability and durability during cutting operations.
The machine’s frame is constructed with a heavy-duty welded steel column and frame, ensuring stability and durability during cutting operations.
This band saw is equipped with balanced cast iron drive wheels instead of the typical aluminum, which offers superior balance and reduced vibration, contributing to a smoother cutting experience.
The generous 12.25” resaw capacity allows you to handle larger projects with ease, while the dual blade speed ranges of 1445 and 2950 feet per minute give you the flexibility to choose the optimal speed for both detailed cuts and fast rip sawing.
The generous 12.25” resaw capacity allows you to handle larger projects with ease, while the dual blade speed ranges of 1445 and 2950 feet per minute give you the flexibility to choose the optimal speed for both detailed cuts and fast rip sawing.
Simply dial in the handwheel on the lower frame of the saw to change speeds with ease.
Large adjustment handles provide comfort and precision during use, and the hinged safety blade guard ensures that you can work safely and easily access the blade when necessary. The bandsaw blade is fully encompassed within the safety guard system making accidents very unlikely.
The band saw also features a large cast iron work table that tilts -5 up to 45 degrees. To complement this task is the use of a rack and pinion table tilt system, which allows quick and precise table adjustments.
The 6-inch tall rip fence with a re-saw bar enhances cutting accuracy and stability.
Other great features that truly make this machine stand out are the included mobility kit mounted to the base of the machine which allows you to move the band saw around your workshop effortlessly.
Also the addition of the large integrated LED light strip above the table which vastly improves visibility in the work area of the machine.
With its comprehensive features, the Stallion CWI-1413 14″ 1.5HP Band Saw truly stands out as the complete package all woodworkers are looking for in a great bandsaw yet at a value that meets beginner to experienced woodworkers.
Enhance your workshop with the Stallion
CWI-1413 14″ 1.5HP Band Saw and experience the perfect blend of power, precision, and convenience.
Enhance your workshop with the Stallion
CWI-1413 14″ 1.5HP Band Saw and experience the perfect blend of power, precision, and convenience.
Specifications:
– Motor Horsepower: 1-1/2 HP TEFC
– Motor Amps: 14/7
– Motor Volts: 115/230V, 60Hz, 1Ph
– Blade Speed: 1,445/2,950 FT/MIN
– Cutting Capacity Height: 12.25”
– Cutting Capacity Width: 13-5/8”
– Blade Width: 3/16” – 3/4”
– Blade Length: 111”
– Table Size: 21-1/2” x 15-3/4”
– Table Left Tilt: -5°
– Table Right Tilt: 45°
– Table Miter Gauge “T” Slot: (2) 3/4” x 3/8” (Miter Gauge not Included)
– Table Height to Floor: 39-1/2”
– Table Height to Base: 20”
– Resaw Fence 18-3/4” x 6” with Resaw Bar
– 14” Cast Iron Wheels
– Blade Guide Type: Tool-less
– Quick Release Blade Tension
– Rack and Pinion Table Tilting
– Mobility Kit Standard Equipment
– LED Light Strip Illuminates Table
– Overall Height: 74-1/2”
– Overall Width: 30”
– Overall Depth: 25”
– Overall Base Size: 21-5/8” x 14-3/4”
– Dust Port: 4”
– Overall Net Weight: 218 lbs.
– Shipping Dimensions: 35” x 14.5” x 18.5”
– Shipping Weight: 254 lbs.
– Motor Horsepower: 1-1/2 HP TEFC
– Motor Amps: 14/7
– Motor Volts: 115/230V, 60Hz, 1Ph
– Blade Speed: 1,445/2,950 FT/MIN
– Cutting Capacity Height: 12.25”
– Cutting Capacity Width: 13-5/8”
– Blade Width: 3/16” – 3/4”
– Blade Length: 111”
– Table Size: 21-1/2” x 15-3/4”
– Table Left Tilt: -5°
– Table Right Tilt: 45°
– Table Miter Gauge “T” Slot: (2) 3/4” x 3/8” (Miter Gauge not Included)
– Table Height to Floor: 39-1/2”
– Table Height to Base: 20”
– Resaw Fence 18-3/4” x 6” with Resaw Bar
– 14” Cast Iron Wheels
– Blade Guide Type: Tool-less
– Quick Release Blade Tension
– Rack and Pinion Table Tilting
– Mobility Kit Standard Equipment
– LED Light Strip Illuminates Table
– Overall Height: 74-1/2”
– Overall Width: 30”
– Overall Depth: 25”
– Overall Base Size: 21-5/8” x 14-3/4”
– Dust Port: 4”
– Overall Net Weight: 218 lbs.
– Shipping Dimensions: 35” x 14.5” x 18.5”
– Shipping Weight: 254 lbs.
Confirm Availability & Shipping for the Stallion CWI-B1413
