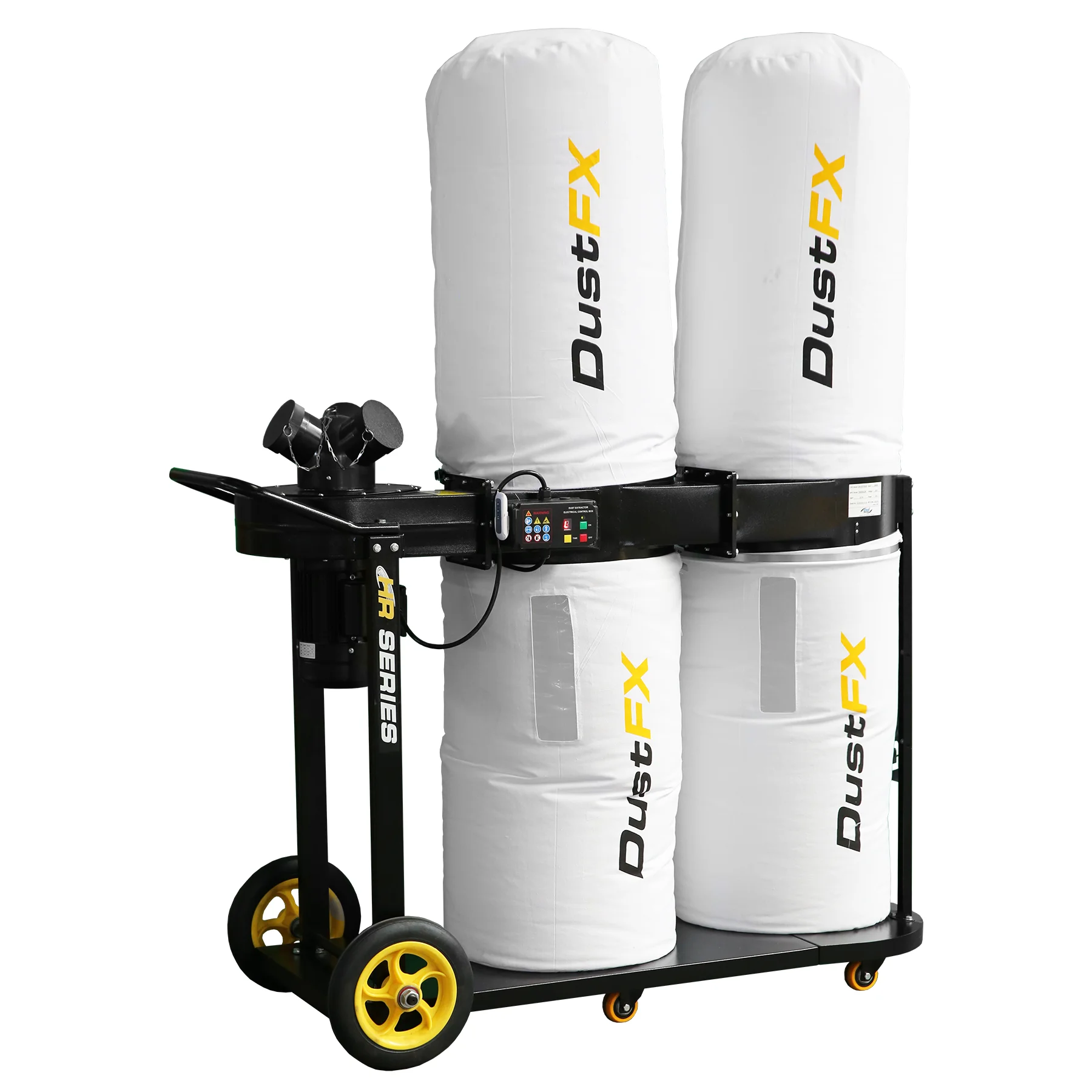

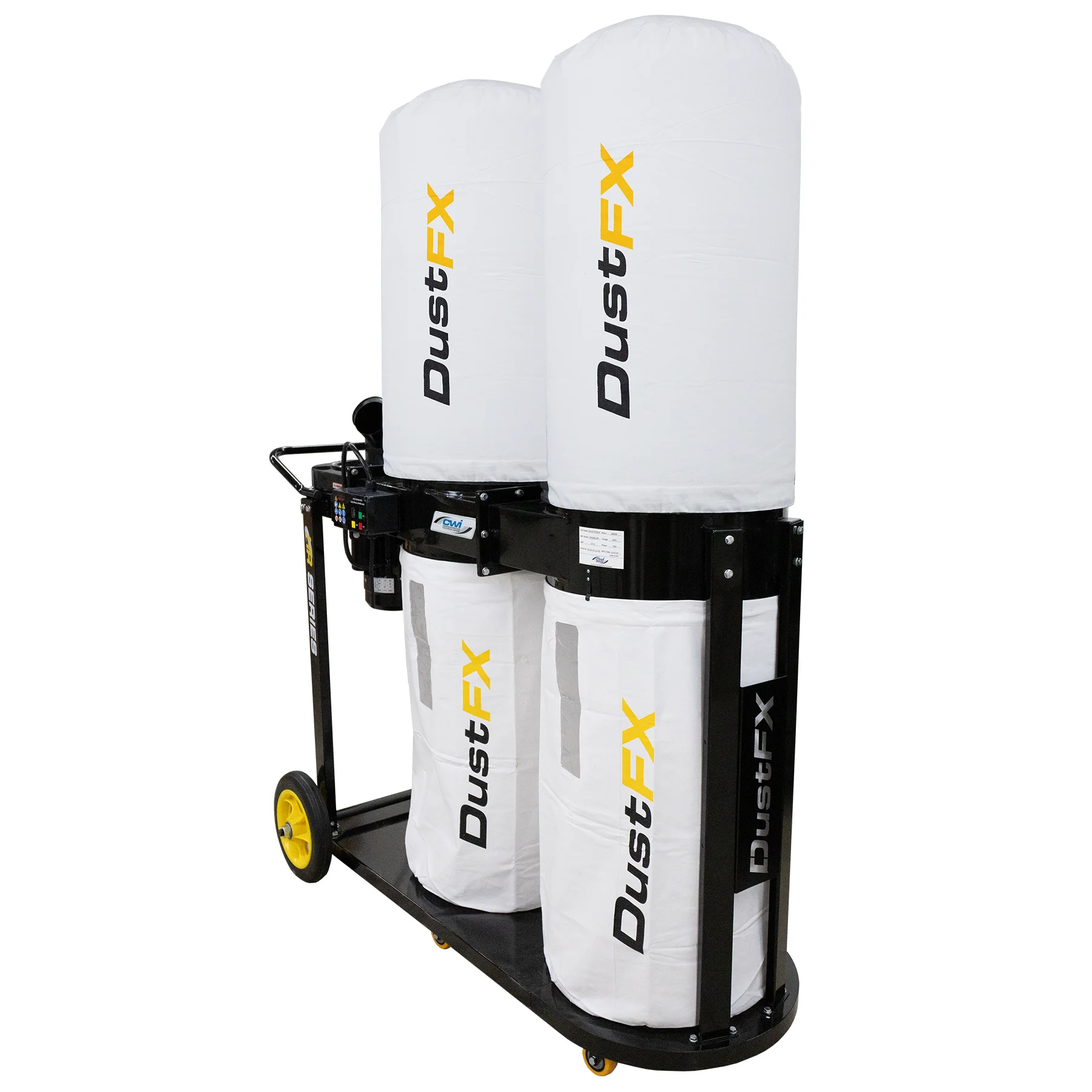

DustFX HR Series 3HP 2 Micron Dust Collector
CWI-DCP300-R
$ 999.95 CDN
+ $149 flat rate shipping on most items/ locations.
The new HR series of single stage dust collection by DustFX has been developed to be the most advanced single stage dust collectors available today. With extreme portability, extra strong frames, 2 micron or Hepa filtration, remote start/stop with timer functions and reversable dust inlets, the HR series is truly in a class of its own.
Product Details

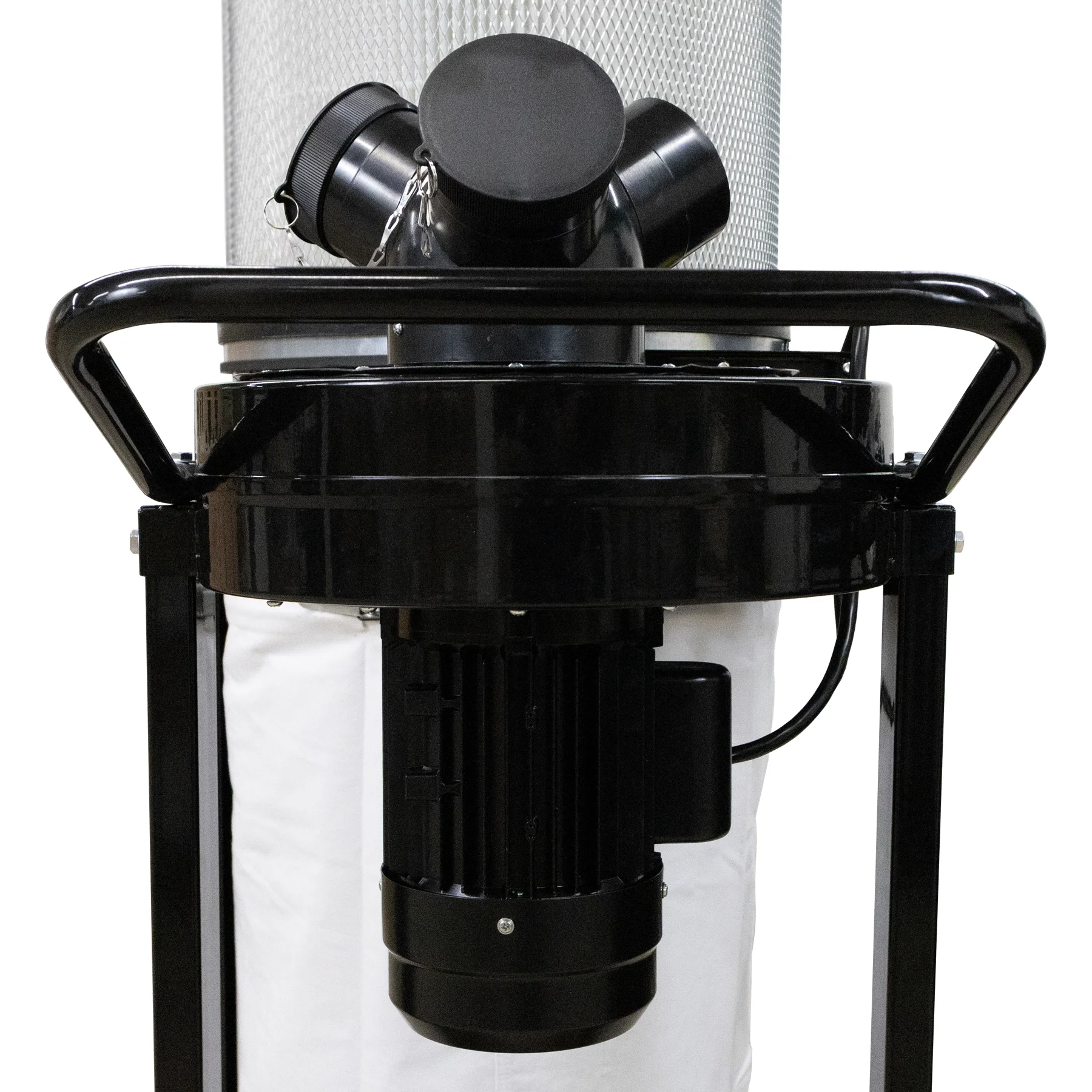

At the heart of the two CWI-DCP300 models is a TEFC industrial-duty 3 HP motor (13.7 amp, 220 volt), producing an impressive 2000 CFM of airflow while operating at a quiet 80 decibels. A precision spin-balanced 12” steel impeller, fully shielded from dust, ensures smooth, reliable operation and long-lasting durability.

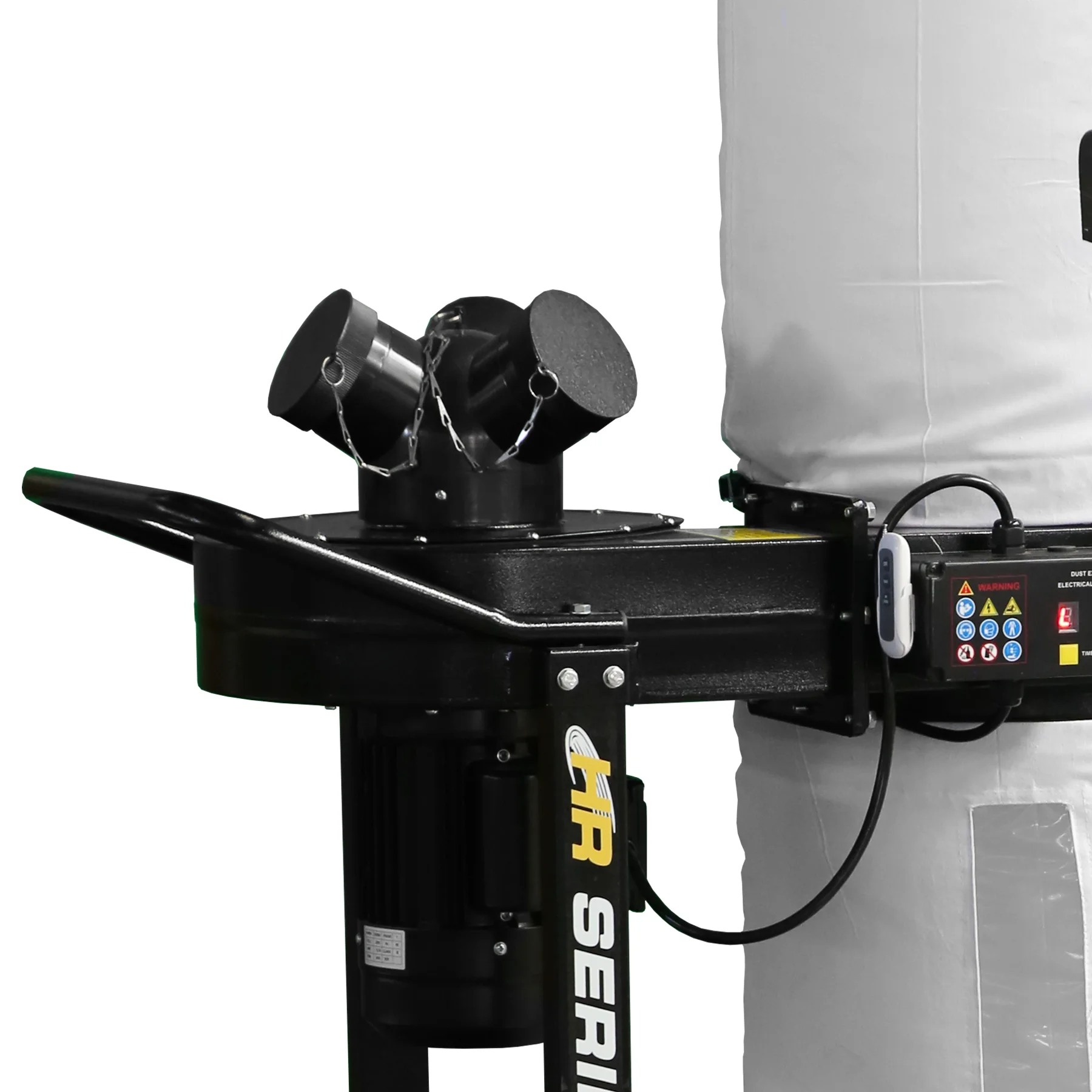

Designed with flexibility in mind, the reversible motor and dust inlet allow you to easily configure the dust hose direction (up or down) to suit your workspace. The unit connects via a 6” main dust inlet and includes a 3x 4” adaptor for expanded compatibility.
Designed with flexibility in mind, the reversible motor and dust inlet allow you to easily configure the dust hose direction (up or down) to suit your workspace. The unit connects via a 6” main dust inlet and includes a 3x 4” adaptor for expanded compatibility.
If adding ducting to your HR Series, the dust Inlet can be assembled with the 6” dust inlet pointing to the ceiling to allow ducting to travel straight up without curves or bends. If the unit is to be utilized in a portable version then the inlet can point up or down during assembly depending on the wants of the operator.

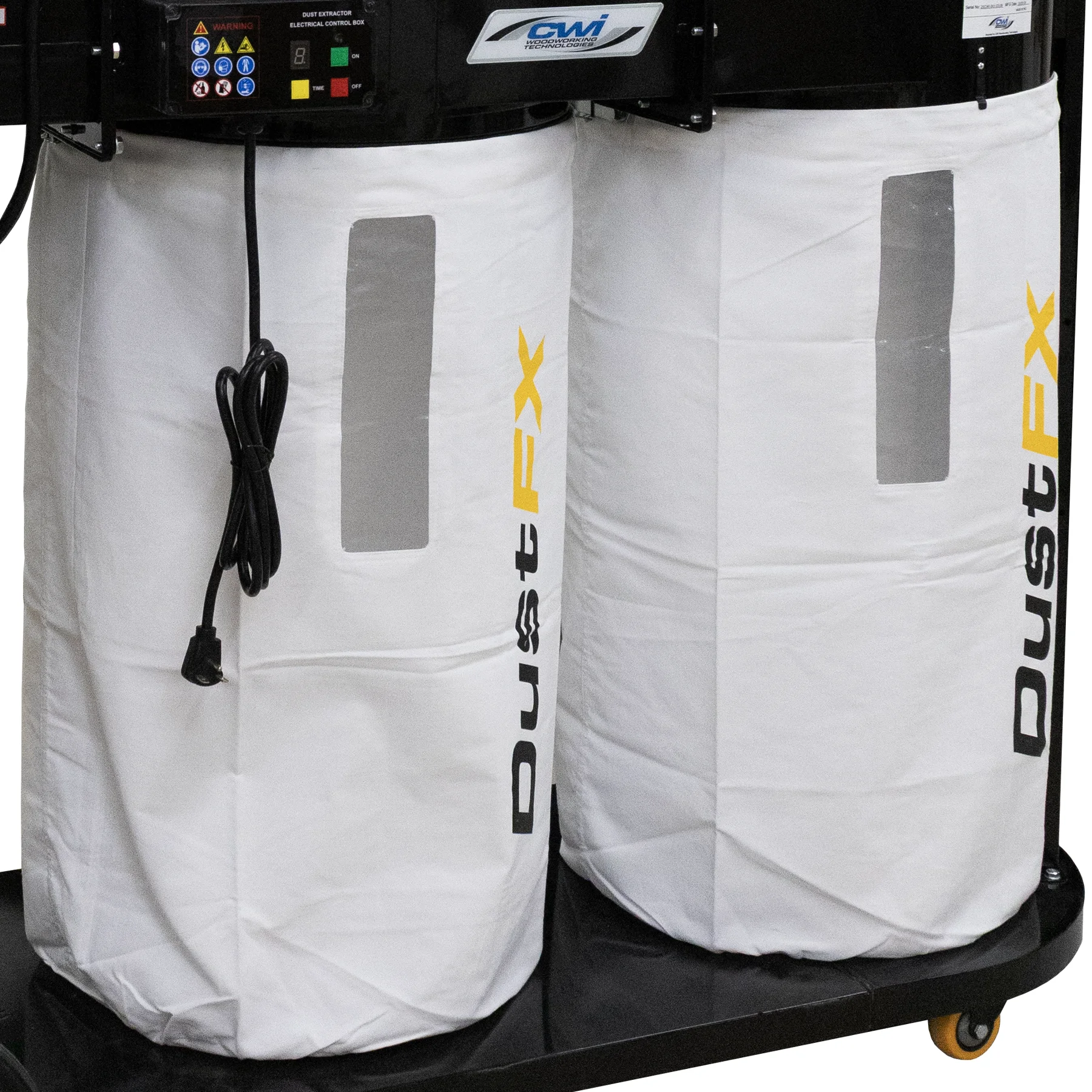

Where the HR series dust collection really shines is in both filtration and convenience. Available in two options, the CWI-DCP300-R is equipped with two cloth 2-micron upper filter bags which captures 100% of particles at 2 micron and larger, helping maintain cleaner air around the shop. For even finer filtration, the CWI-DCP300-HR offers two 20” diameter X 24” tall HEPA H13 canister filters to provide collection of 99.97% of all particles larger than .33 of a micron. The reusable cloth lower collection bags include a convenient viewing window and offers a generous 153-litre x 2 dust capacity, reducing downtime for emptying.

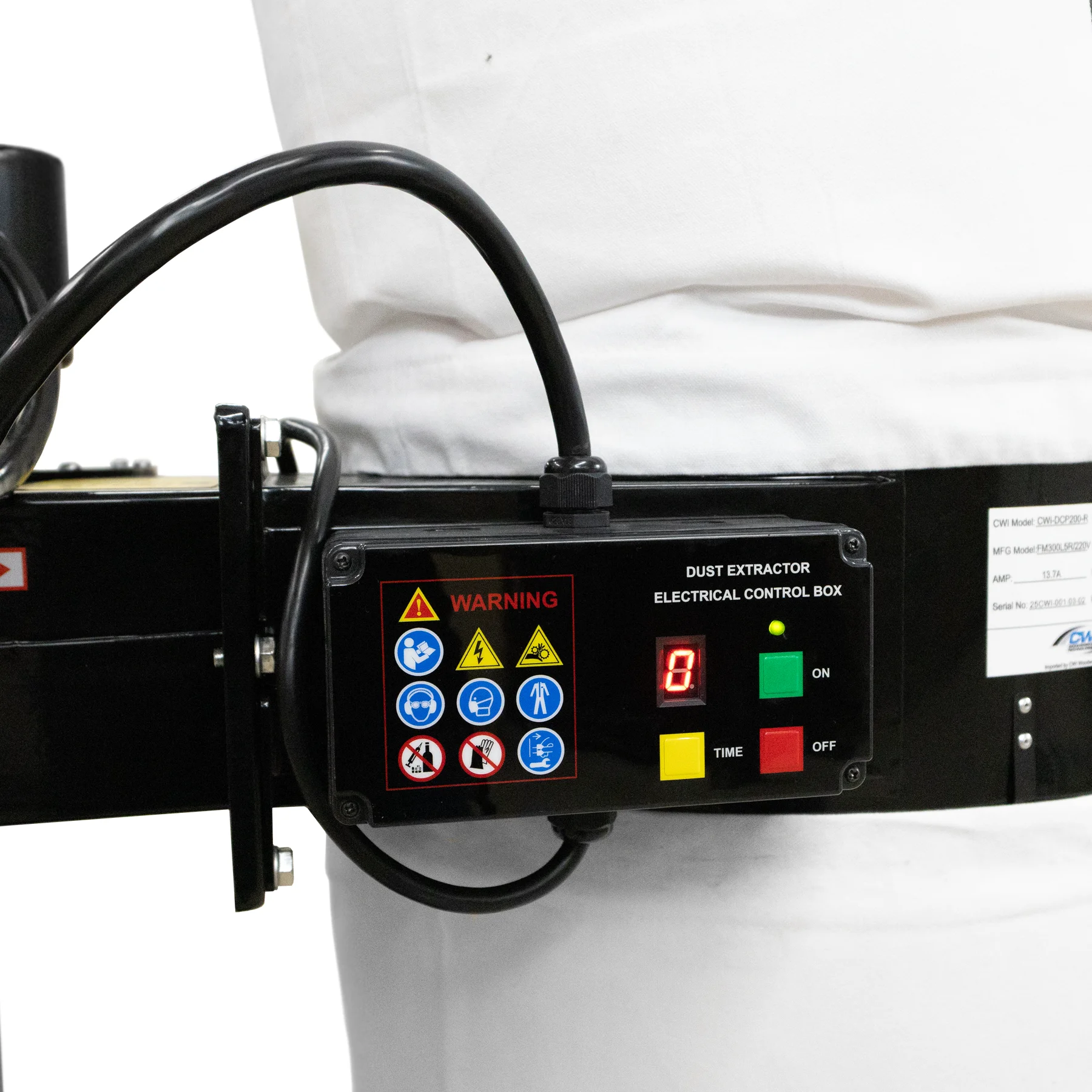

Adding to its ease of use, the HR Series includes remote control operation, allowing you to start or stop the unit from anywhere in your shop. A built-in runtime timer function lets you set the collector to run for a specified duration—perfect for clearing residual airborne dust after you’ve finished working.
True to the new HR Series design, The DCP300 models sets itself apart from any competitor with Its rugged, custom-designed, rigid steel frame which will ensure long-term durability, and especially the huge 12” rubber wheels to provide exceptional mobility around your shop. There is no floor surface the HR series cannot transverse with ease.
Powerful, versatile, and now smarter than ever—the DustFX HR Series 3HP Dust Collector is the ideal solution for high-performance dust collection with modern convenience.
Specifications:
– TEFC Industrial Duty Cycle 3 HP Motor 13.7 amp/220 volt
– Reversable Motor/Inlet for Optional Direction of the Dust Hose (Up/Down)
– Rated 2000 CFM Capacity at 80 Decibels
– Spin Balanced 12” Steel Impeller Shielded from Dust
– Remote Start/Stop Control with Timer Function
– 2 Micron Upper & Lower Bags
– Optional Hepa H13, Canister Filter Available (CWI-DCP300-HR)
– Filters 100% of 1 Micron and larger
– Reusable Cloth Lower Collection Bags w/Viewer Windows
– Dust Capacity of 2x 153 Litre
– 6” Main Dust Inlet with 3x 4” Dust Inlet Adaptor
– CSA Electrics
– Custom-Designed Rigid Steel Frame
– Large 12” wheels for Easy Mobility
– Floor Space: 1653mm x 775mm
– Shipping Dimensions (no Hepa Filters): 1472mm x 590mm x 630mm
– Shipping Weight: 69kg
– Hepa Filter Shipping Dimensions: 560mm x 560mm x 730mm (x2)
– Hepa Filter Shipping Weight: 12kg (x2)
– TEFC Industrial Duty Cycle 3 HP Motor 13.7 amp/220 volt
– Reversable Motor/Inlet for Optional Direction of the Dust Hose (Up/Down)
– Rated 2000 CFM Capacity at 80 Decibels
– Spin Balanced 12” Steel Impeller Shielded from Dust
– Remote Start/Stop Control with Timer Function
– 2 Micron Upper & Lower Bags
– Optional Hepa H13, Canister Filter Available (CWI-DCP300-HR)
– Filters 100% of 1 Micron and larger
– Reusable Cloth Lower Collection Bags w/Viewer Windows
– Dust Capacity of 2x 153 Litre
– 6” Main Dust Inlet with 3x 4” Dust Inlet Adaptor
– CSA Electrics
– Custom-Designed Rigid Steel Frame
– Large 12” wheels for Easy Mobility
– Floor Space: 1653mm x 775mm
– Shipping Dimensions (no Hepa Filters): 1472mm x 590mm x 630mm
– Shipping Weight: 69kg
– Hepa Filter Shipping Dimensions: 560mm x 560mm x 730mm (x2)
– Hepa Filter Shipping Weight: 12kg (x2)
