DustFX Max 4600 Industrial Dust Collection System
CWI-D4600M
$ 22,499.95 CDN
+ $149 flat rate shipping on most items/ locations.
The QuietAir Max 4600 is manufactured by DustFX in Italy to be the highest quality, best performing Industrial dust collection system available today.
It features a very efficiently designed heavy steel impeller, special blower housing, high performance filter media and advanced electrical system for extreme woodworking dust collection performance.
It features a very efficiently designed heavy steel impeller, special blower housing, high performance filter media and advanced electrical system for extreme woodworking dust collection performance.
Product Details
Our special impeller design combined with a slow turning 1750 RPM 11 hp three phase motor creates a very high volume of air movement at 4600 CFM with over 12” of static pressure.
But at the same time we are able to keep an unbelievable low noise level of 75db for the quietest of workshops.
But at the same time we are able to keep an unbelievable low noise level of 75db for the quietest of workshops.
There are 48 stainless steel reinforced polyester filter sleeves providing 516 square feet of filtering surface area.
This extra capacity filtering surface combined with the quality of our dust sleeves allows very efficient movement of air.
This extra capacity filtering surface combined with the quality of our dust sleeves allows very efficient movement of air.
To aid in efficiency we have a built in electric shaker to clean the bags which activates each time the main power to the collector is turned off.
There are three built in manually external adjustable baffles to ensure even flows of dust to the collection bags.

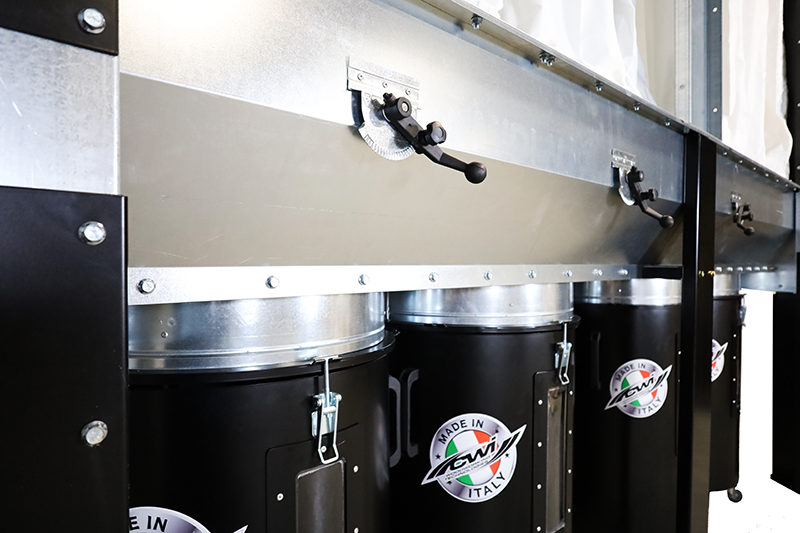

Optional are four 50 gallon steel “collector bins” on wheels with easy to dump handles and a window so users know when dumping is needed.
The QueitAir Max 4600 dust collection system is the ideal shop solution to provide superior dust collection performance at a very low noise level and simple maintenance.
Specifications:
– 4600 CFM @ 12” Static Pressure
– 11 HP 220/3/60 1750 RPM Motor
– CSA Certification
– Very Quiet 75db Operation Sound level
– Heavy Steel Impeller System
– Auto Start Electric Shaker Dust Bag Cleaning
– Stainless Steel Reinforced Polyester Filter Sleeves
– 516 Square Feet of Filtering Surface
– 48 Dust Sleeves 8” dia x 60” long
– External Adjustable Dust Flow Baffles
– 14” Dust Inlet (360mm)
– 600 mm Dust Collection Bags
– Optional: Steel 50 Gallon Dust Bins w/wheels and dump handles (3-24” dia)
– 126”L x 39.5”W x 118”H (Without Blower)
– Footprint 14′ x 4′ with Blower
– Shipping Weight 925 LBS
– (Optional Steel Drums Extra 40 lbs ea)
– 4600 CFM @ 12” Static Pressure
– 11 HP 220/3/60 1750 RPM Motor
– CSA Certification
– Very Quiet 75db Operation Sound level
– Heavy Steel Impeller System
– Auto Start Electric Shaker Dust Bag Cleaning
– Stainless Steel Reinforced Polyester Filter Sleeves
– 516 Square Feet of Filtering Surface
– 48 Dust Sleeves 8” dia x 60” long
– External Adjustable Dust Flow Baffles
– 14” Dust Inlet (360mm)
– 600 mm Dust Collection Bags
– Optional: Steel 50 Gallon Dust Bins w/wheels and dump handles (3-24” dia)
– 126”L x 39.5”W x 118”H (Without Blower)
– Footprint 14′ x 4′ with Blower
– Shipping Weight 925 LBS
– (Optional Steel Drums Extra 40 lbs ea)
Confirm Availability & Shipping for the DustFX CWI-D4600M
