DustFX 1HP HEPA Wall-Mount Dust Collector
CWI-DC100-WM
$ 699.95 CDN
+ $149 flat rate shipping on most items/ locations.

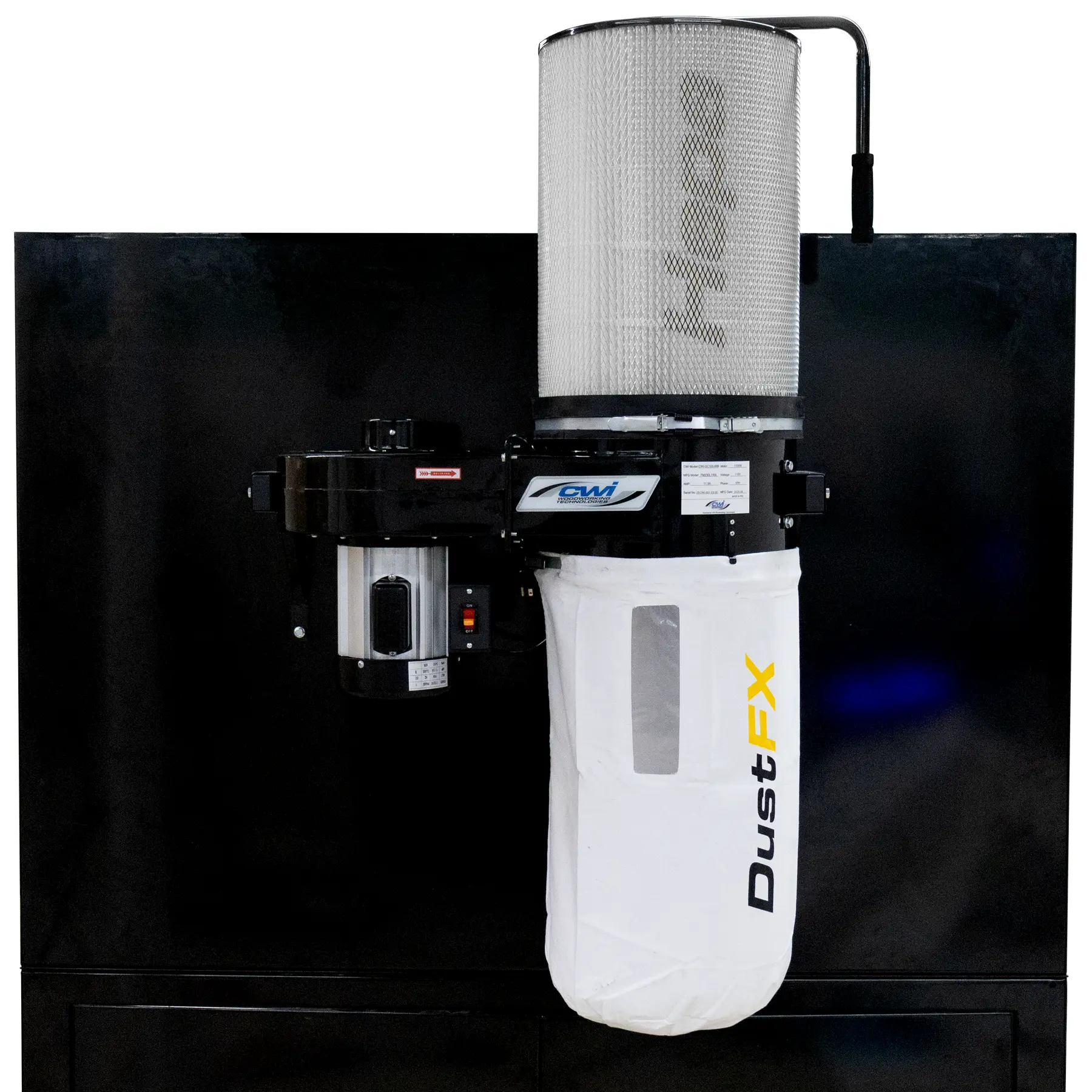

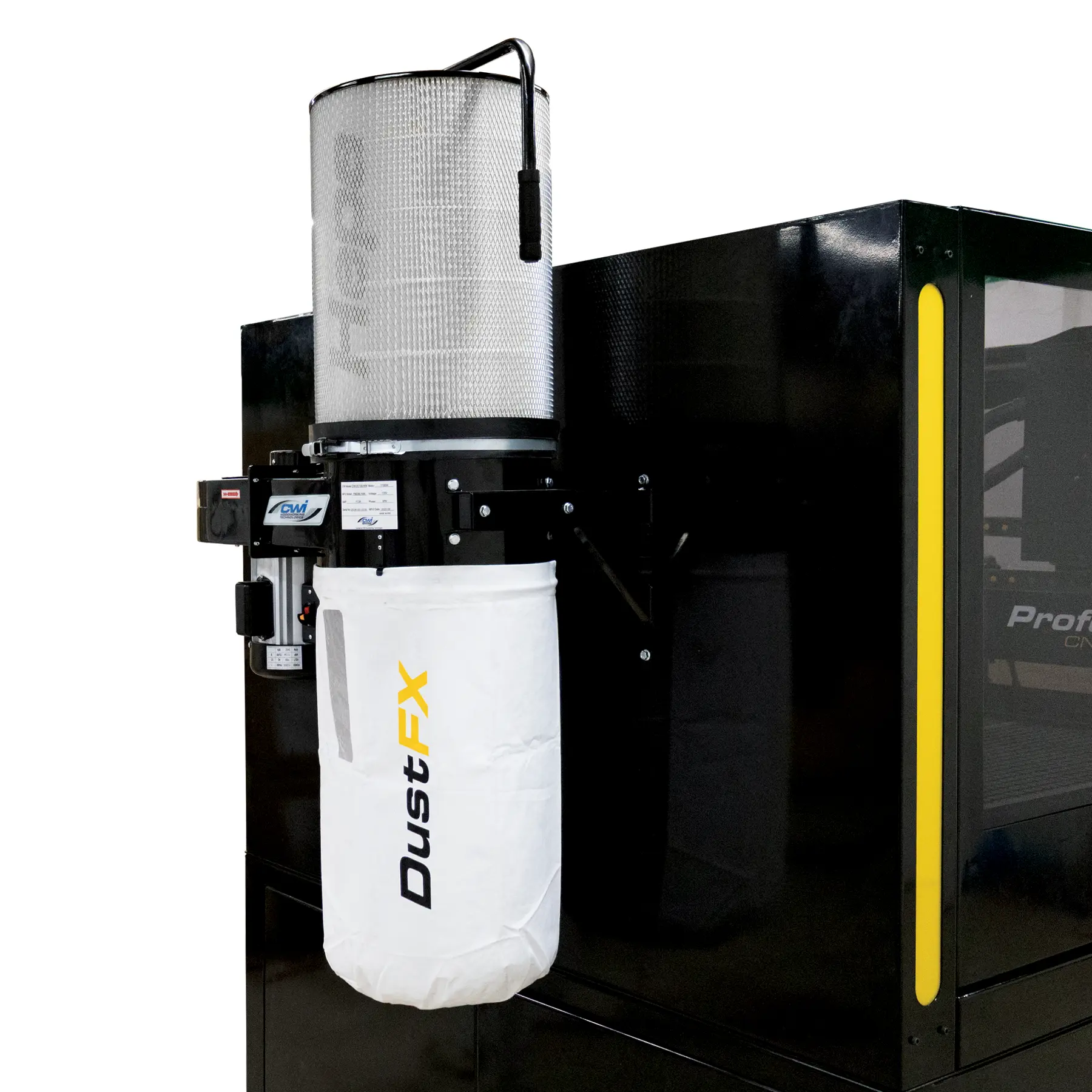

The all-new DustFX 1HP Wall-Mount Dust Collector with HEPA filtration, is designed to be a powerful, space-saving dust collection solution for small shops or dedicated application settings. With versatility in mind, this unit features a custom rigid steel, triangle wall-mount system allowing the machine to be mounted up off the floor to minimize use of needed floor space. A very specific use is mounted to CNC stands/enclosures for added simplicity of dust collection, incorporated right at the machine.
Product Details

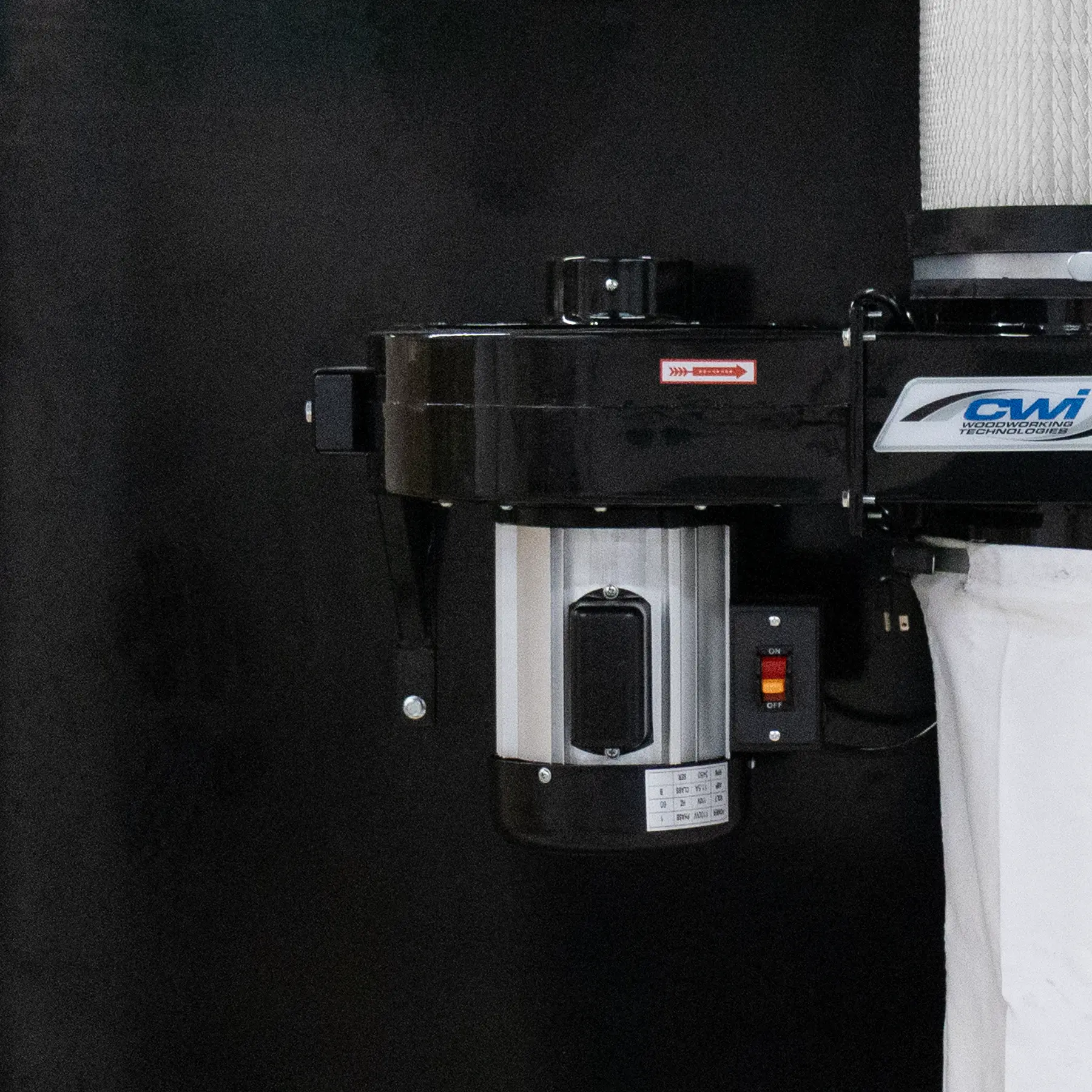

At the heart of the CWI-DC100-WM is a TEFC industrial-duty 1 HP motor (11.5 amp / 110V), delivering reliable, continuous operation.
Its reversible motor and inlet configuration allow flexible hose direction (up or down), making it adaptable to a wide range of shop layouts. With an impressive airflow rating of 700 CFM at just 74 decibels, it provides powerful dust extraction while maintaining a comfortable working environment.
Its reversible motor and inlet configuration allow flexible hose direction (up or down), making it adaptable to a wide range of shop layouts. With an impressive airflow rating of 700 CFM at just 74 decibels, it provides powerful dust extraction while maintaining a comfortable working environment.

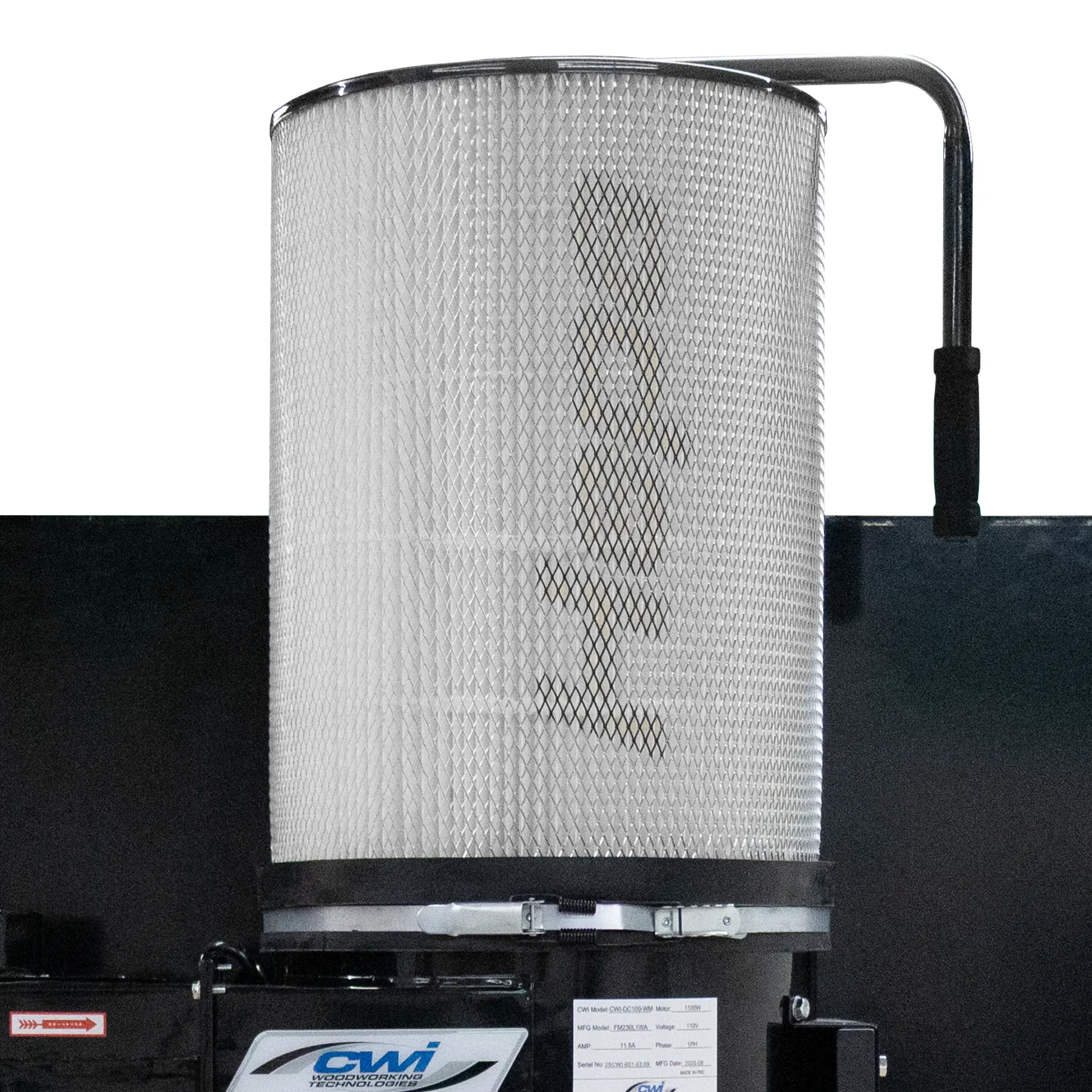

Performance meets precision with a spin-balanced 9” steel impeller, carefully shielded from dust for longevity and smooth operation. The system is equipped with a HEPA H13 canister filter, capturing 99.97% of particles as small as 0.3 microns and 100% of particles .5 micron and larger, ensuring exceptionally clean air in your workspace.

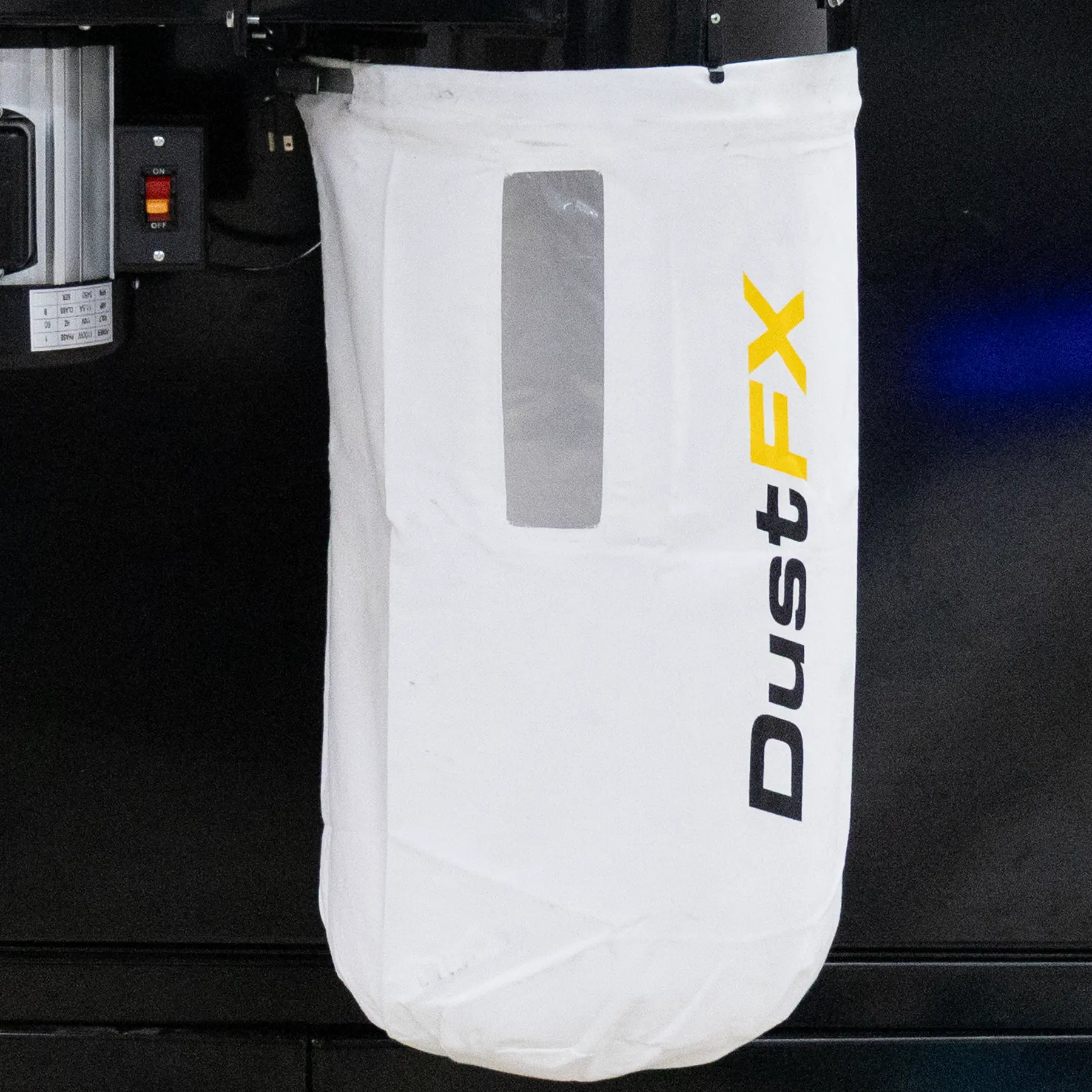

Maintenance is quick and efficient thanks to the manual filter cleaning handle with flapper system, while the reusable cloth lower collection bag—complete with a convenient viewing window—makes monitoring dust levels easy. With a generous 57-litre dust capacity and a standard 4” main dust inlet, this collector is built to handle demanding tasks with ease.
Certified with CSA-approved electrics, the CWI-DC100-WM combines safety, efficiency, and durability. Its thoughtfully engineered design keeps your shop organized and clutter-free, making it the ideal dust collection solution for compact, high-performance workspaces.
The new series of single stage dust collection by DustFX has been developed to be the most advanced single stage dust collectors available today.
Specifications:
– TEFC Industrial Duty Cycle 1 HP Motor 11.5 amp /110 volt
– Reversable Motor/Inlet for Optional Direction of the Dust Hose (Up/Down)
– Rated 700 CFM Capacity at 74 Decibels
– Spin Balanced 9” Steel Impeller Shielded from Dust
– Hepa H13, Canister Filter
– Manual Filter Cleaning Handle/Flapper System
– Filters 99.97% of .3 micron and 100% of .5 Micron and larger
– Reusable Cloth Lower Collection Bag w/Viewer Window
– Dust Capacity of 57 Litre
– 4” Main Dust Inlet
– CSA Electrics
– Custom-Designed Rigid Triangle Steel Frame & Wall Mount System
– Floor Space: 790mm x 467mm
– Ships in 2 Boxes:
– Shipping Size: 760X450X460 mm + 620X400X400 mm
– Shipping Weight: 26kg + 8kg
– TEFC Industrial Duty Cycle 1 HP Motor 11.5 amp /110 volt
– Reversable Motor/Inlet for Optional Direction of the Dust Hose (Up/Down)
– Rated 700 CFM Capacity at 74 Decibels
– Spin Balanced 9” Steel Impeller Shielded from Dust
– Hepa H13, Canister Filter
– Manual Filter Cleaning Handle/Flapper System
– Filters 99.97% of .3 micron and 100% of .5 Micron and larger
– Reusable Cloth Lower Collection Bag w/Viewer Window
– Dust Capacity of 57 Litre
– 4” Main Dust Inlet
– CSA Electrics
– Custom-Designed Rigid Triangle Steel Frame & Wall Mount System
– Floor Space: 790mm x 467mm
– Ships in 2 Boxes:
– Shipping Size: 760X450X460 mm + 620X400X400 mm
– Shipping Weight: 26kg + 8kg
