SandX 29″ x 75″ Deluxe Wide Belt Sander
CWI-S2975-S1-M2
$ 21,999.95 CDN
+ $149 flat rate shipping on most items/ locations.
This heavy duty SandX 29″ x 75″ single head wide belt sander offers more features and performance than any other sander in its class. A true step above for any woodworking shop looking for a small good quality wide belt sander. SandX Abrasive machines are built to very high standards for woodworkers needing exceptional performance but still at reasonable value.
Product Details
The CWI-WBS2975-S1 is an amazing machine which starts with a strong 10 HP sanding motor powering the combination finishing head with 2″ platen for excellent abrasive finishing of woodworking projects.
Of special note on this machine is the 75” sanding belt length. Most 25”-37” wide belt sanders use 48”-60” sanding belt lengths.
Of special note on this machine is the 75” sanding belt length. Most 25”-37” wide belt sanders use 48”-60” sanding belt lengths.
Only the real heavy duty sanders use 75” length. The extra length accomplishes two things. First the extra length means the belts will run cooler as they have more time for the belt surface to rotate. Second the frame and structure of the machine are built much heavier to support the larger belt meaning a far better built machine. The shorter belt length machines are simply built to save costs….not for performance!
Tracking trueness of the abrasive sanding belt is done electronically for constant “maintenance free” usage of the belt tracking mechanism.
Many competitive machines use pneumatic abrasive belt tracking components which require constant maintenance of diaphragms, pumps and air lines which deteriorate over a period of time.
The SandX wide belt sander uses an electronic eye system with micro switches to activate the oscillation of the sanding head to keep the sanding belts tracking properly on the machine.
Many competitive machines use pneumatic abrasive belt tracking components which require constant maintenance of diaphragms, pumps and air lines which deteriorate over a period of time.
The SandX wide belt sander uses an electronic eye system with micro switches to activate the oscillation of the sanding head to keep the sanding belts tracking properly on the machine.

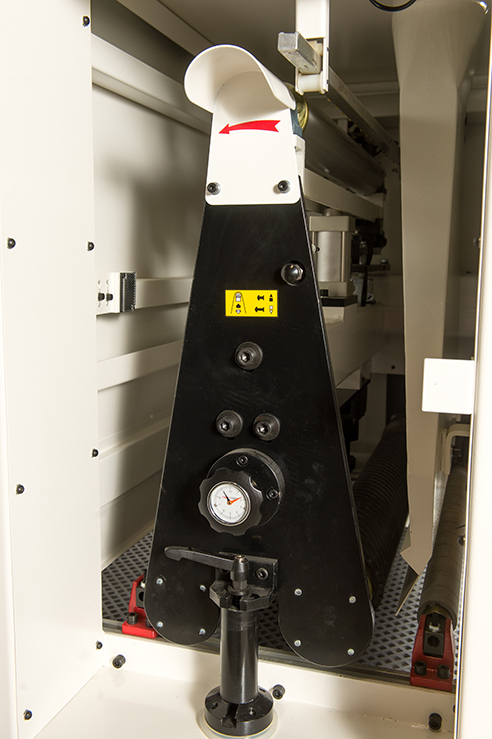

One of the exclusive features on the SandX wide belt sander is the abrasive belt cleaning devise on the sanding head.
This air jet cleaning feature ensures better sanding belt life whether you are using cloth or paper belts by blowing dust free from the belts abrasive surface while at the same time keeping the belt at a cool temperature to ensure less break down of the sanding material.
This air jet cleaning feature ensures better sanding belt life whether you are using cloth or paper belts by blowing dust free from the belts abrasive surface while at the same time keeping the belt at a cool temperature to ensure less break down of the sanding material.
Another very important feature is the electronic work piece measuring device.
Simply set your work piece on the measurement platform, hold the table rise button till the wood hits the measurement pin, and the machine will automatically set the height at the appropriate level for sanding that work piece.
No need for calipers or tape measures. The table will electronically rise and fall with a 1/4 HP motor to easily set the desired height.
Measurements are available in either metric or imperial measurement.
Simply set your work piece on the measurement platform, hold the table rise button till the wood hits the measurement pin, and the machine will automatically set the height at the appropriate level for sanding that work piece.
No need for calipers or tape measures. The table will electronically rise and fall with a 1/4 HP motor to easily set the desired height.
Measurements are available in either metric or imperial measurement.
The table rise/fall motor is a 1/2 HP motor which can also be operated manually with push buttons to set the desired height with a digital controller and height read out.
Measurements can be set in either metric or imperial measurement.
SandX wide belt sanders also offer electronic limit switches, safety shut down bar and fast acting disc brakes.
The machine will automatically stop if you experience a sanding belt breakage.
Measurements can be set in either metric or imperial measurement.
SandX wide belt sanders also offer electronic limit switches, safety shut down bar and fast acting disc brakes.
The machine will automatically stop if you experience a sanding belt breakage.
The variable speed rubber conveyer belt travels at 13-65 feet per minute by a very strong 1 HP feed motor and is controlled by an easy adjust automatic tracking device.
The conveyer table is supported by very heavy duty jack screws for years of trouble free table adjustment and trueness.
The conveyer table is supported by very heavy duty jack screws for years of trouble free table adjustment and trueness.
SandX wide belt sanders are built with an abundance of quality features to ensure years of exceeding performance at a very affordable price.
Specifications:
– M2- 10HP 220/3/60 Electrics
– Combination Finishing head with 120mm dia Drum at 70 Durometer with 2″ platen
– 1/2 HP Power Rise and Fall Table
– Automatic Tracking of Conveyor Belt
– 1 HP Conveyor Belt Feed Motor with Variable Speeds of 13′ – 65′ / minute
– Photoelectric Sanding Belt Tracking and Oscillation
– Wrenchless Adjustment of Sanding Belt Tracking
– Automatic Disc Brakes in case of belt breakage
– Safety Emergency Push Stop Bar at front of machine
– Centralized Control Panel with Amp Meter
– Electronic Automatic Digital Height Controller (metric or imperial)
– Electronic Digital Work Piece Thickness Measurement
– Air Jet Belt Cleaning and Cooling
– Four Pressure Rollers to ensure proper work support
– Sanding Belt Size 29″ x 75″
– Sanding Working Width 27.5”
– Maximum Working Height of 6.25″
– Dual 4” Dust outlets
– Required Air Pressure .6MPa
– Required Dust Collection 2000CFM
– Machine Weight of 2650 LBS
– Dimensions 57” x 65” x 76”
– CSA Certified
– M2- 10HP 220/3/60 Electrics
– Combination Finishing head with 120mm dia Drum at 70 Durometer with 2″ platen
– 1/2 HP Power Rise and Fall Table
– Automatic Tracking of Conveyor Belt
– 1 HP Conveyor Belt Feed Motor with Variable Speeds of 13′ – 65′ / minute
– Photoelectric Sanding Belt Tracking and Oscillation
– Wrenchless Adjustment of Sanding Belt Tracking
– Automatic Disc Brakes in case of belt breakage
– Safety Emergency Push Stop Bar at front of machine
– Centralized Control Panel with Amp Meter
– Electronic Automatic Digital Height Controller (metric or imperial)
– Electronic Digital Work Piece Thickness Measurement
– Air Jet Belt Cleaning and Cooling
– Four Pressure Rollers to ensure proper work support
– Sanding Belt Size 29″ x 75″
– Sanding Working Width 27.5”
– Maximum Working Height of 6.25″
– Dual 4” Dust outlets
– Required Air Pressure .6MPa
– Required Dust Collection 2000CFM
– Machine Weight of 2650 LBS
– Dimensions 57” x 65” x 76”
– CSA Certified
